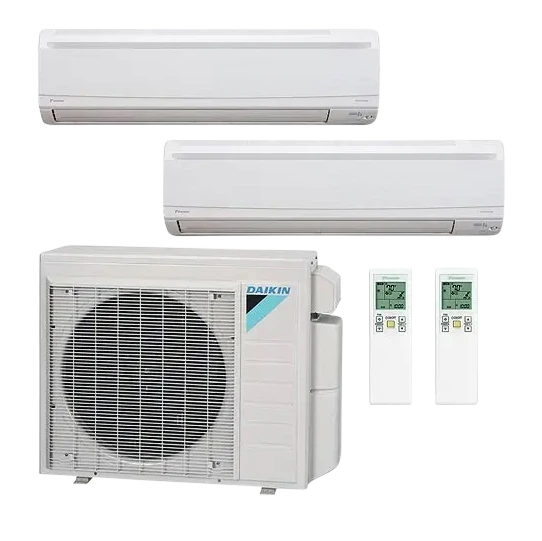

Daikin 22,000 BTU Dual Zone Wall Mounted Mini Split Heat Pump (7K + 15K)

Keep multiple rooms cool and warm quietly and efficiently with the Daikin 22,000 BTU Dual Zone Wall Mounted Mini Split Heat Pump (7K + 15K). This powerful unit uses two indoor air handlers and a single outdoor condenser to deliver year-round comfort to multiple zones.

Note: The BTU capacity of a Multi-Zone system is measure by the sum of all air handlers, not by the rated capacity of the condenser.

One Unit, Dual-Room Comfort

This dual-zone mini split systems from Daikin is the perfect choice for delivering year-round comfort to multiple rooms. It features the following components.

• Outdoor Condenser: The 24,000 BTU Daikin 3MXS24WMVJU9 condenser connects to the two indoor air handlers.
• Daikin CTXS07WVJU9 Air Handler: This 7,000 BTU indoor air handler is ideal for smaller living spaces.
• Daikin FTXS15WVJU9 Air Handler: With 15,000 BTUs of power, use this air handler in larger areas such as living rooms.

An Operating Mode For Any Season

This Daikin 22,000 BTU mini split features easy-to-use operating modes designed to reduce energy output while increasing comfort. A wireless remote control makes it easy to find the perfect indoor temperature.

• Cool + Heat: Select between cooling or heating, or select the auto mode button and let the unit select heating or cooling between 64-86 degrees F.
• Econo Mode: Reduces energy consumption when other high-energy appliances are in use.
• Dry Mode: On rainy days, select the dry mode to remove excess moisture from the air.
• Fan Only: Use this function without heating or cooling to circulate stagnant air. Select between high, medium, and low settings, or opt for auto or quiet mode fan functions.

Control The System From Anywhere

Available through Google Play and Apple Store, the Daikin Comfort Control app offers wireless programming from virtually anywhere on any smartphone or tablet. Control temperature, operating modes, and set schedules for individual or multiple units. Wireless control is also available with the DKN App (iTunes, Google Play).

Note: Wi-Fi functionality requires the Airzone by Daikin Wireless Interface Adapter for Mini Split Systems (Sold Separately).

Additional Features

• Wireless Remote: An LCD display remote displays settings, modes, and error codes.
• Automatic Defrost: Performs automatic defrosting when needed.
• Hot Start Heating: Instead of cold, chilly air, you feel warm air immediately.
• Quick Warming: Prevents the compressor from pumping liquid refrigerant in low ambient conditions.
• Audible Signals: When the mini split receives a signal, the unit will emit an auditory signal.
• Adjustable Flap + Louvers: Set the vertical flap to auto swing or a fixed position, and adjust the horizontal louvers for a desired airflow.
• Programmable Timer: Program in one hour increments up to 12 hours for start-up and shut down times during the day, at night, or when you’re away.
• Adjustable Thermostat: Adjust the thermostat to your preferred temperature between 64 – 90 degrees F.
• Auto Restart: Even after a power outage, the mini split will restore to previous settings.
• Blue Fin Protection: Exterior heat exchanger is protected against the elements and corrosion for long-lasting use.
• Air Filter: A washable, reusable filter with titanium apatite photocatalytic air purifying screen filters out odors and debris.
• Degree Readout: Select between either Fahrenheit or Celsius temperature display.

Required Accessories

The following accessories are necessary for installation and are not included with the unit.

Line Sets Kit: Required

Summary

Keep multiple rooms comfortable all year long with this dual-zone mini split from Daikin.
